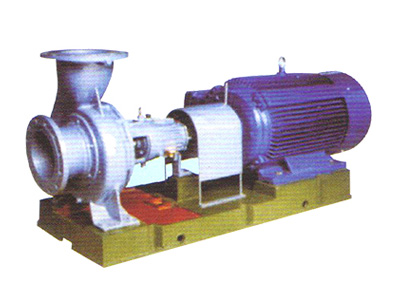

ZA Series Centrifugal Pumps
The ZA series centrifugal pumps are designed for petroleum and chemical processing. The performance range covers capacities up to 2400m³/h at 1450 rpm and differential heads up to 250m at 2900 rpm with a maximum operating temperature of 180℃. With a wide selection of materials and the possibility of applying several shaft sealing systems, the pumps are used to transfer neutral or corrosive liquids, or liquids with few non-ferrous particles.
Technical Parameters
- Shaft seal type: engine drive
- Casing & impeller materials: 304, 306L stainless steel
- Max rated pressure at 20℃: PN25
- Max fluid temperature: -20℃/+180℃
- Max flow rate at 2900 rpm: 2600m³/h
- Max head at 2900 rpm: 250m
- Max flow rate at 1450 rpm: 2400m³/h
- Max head at 1450 rpm: 128m
- Allowable medium density range: ≤1.84g/cm3
- Others: available on request
Common Applications
- Refinery Industry
- Chemical Processing
- Fine Chemical Processing
- Metallurgical Industry
- Fiber Processing
- Pharmaceutical
- Electroplate Industry
- Paper Industry
- Electric Power Industry
