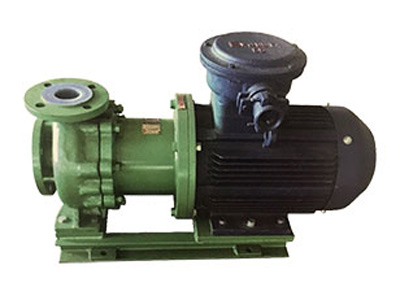

IMC-D Series Magnetic Drive Pumps
The IMC-D series magnetic drive pumps are lined with plastic and fluorine plastic and are used to cover a full chemical compatibility with corrosive and aggressive fluids. All parts are directly integrated.
The fluoroplastic surface is tightly anchored to the casing after sintering and molding and the lining layer will maintain its original shape, even under rapidly changing liquid temperatures or vacuum conditions. The casing has a high mechanical strength, while the fluorine plastic lining is resistant to corrosion, pressure, high temperature and vacuum states. The pumps operate at a maximum pressure of 1.6MPa.
Technical Parameters
- Shaft seal type: magnetic drive
- Casing & impeller materials: PFA, F46 and so on
- Max rated pressure at 20℃: PN16
- Max fluid temperature: -40℃/+150℃
- Max flow rate at 2900 rpm: 200m³/h
- Max head at 2900 rpm: 50m
- Allowable medium density range: ≤1.84g/cm3
- Power range: 3～30kW
- Others: available on request
Common Applications
- Refinery Industry
- Chemical Processing
- Fine Chemical Processing
- Metallurgical Industry
- Fiber Processing
- Pharmaceutical
- Electroplate Industry
- Paper Industry
- Electric Power Industry
