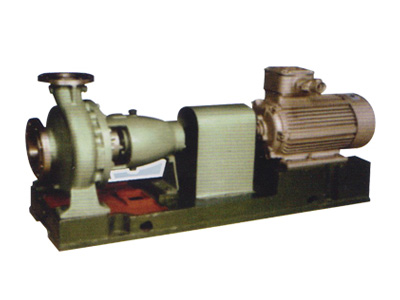

CZ Series Centrifugal Pumps
The CZ series centrifugal pumps feature a single-stage, single suction and horizontal design. Their main parameters and designations are in line with ISO2858 standards and have been improved upon to ensure their capability to handle a wide array of temperature and corrosive liquids with minimal ferrous particles. The pumps are suitable for highly corrosive and strong oxidizing chemicals that magnetic drive pumps are not applicable for. They are able to transfer liquids between -80℃ and +300℃.
Technical Parameters
- Shaft seal type: engine drive
- Casing & impeller materials: 304, 306L stainless steel
- Max rated pressure at 20℃: PN25
- Max fluid temperature: -80℃/+300℃
- Max flow rate at 2900 rpm: 2000m³/h
- Max head at 2900 rpm: 160m
- Allowable medium density range: ≤1.84g/cm3
- Others: available on request
Common Applications
- Refinery Industry
- Chemical Processing
- Fine Chemical Processing
- Metallurgical Industry
- Fiber Processing
- Pharmaceutical
- Electroplate Industry
- Paper Industry
- Electric Power Industry
