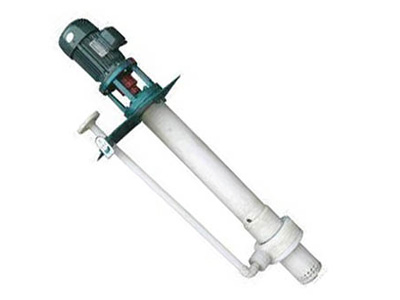

FZB Series Centrifugal Pumps
The FZB series centrifugal pumps feature a number of advantages. Because they are self-priming, they can be mounted high and dry at floor level with only the suction line in the liquid, meaning there is rarely any need for operators. The self-priming time and self-priming height are both improved compared to other series to enhance the pump suction capability. These pumps are applicable for use between -40℃ and 120℃, with a mechanical seal that does not require any cooling water and will self-adjust to ensure a safe, quiet operation.
Technical Parameters
- Shaft seal type: engine drive
- Max rated pressure at 20℃: PN16
- Max fluid temperature: -40℃/+120℃
- Max flow rate at 2900 rpm: 100m³/h
- Max head at 2900 rpm: 80m
- Allowable medium density range: ≤1.84g/cm3
- Power range: 1.5～18.5kW
- Others: available on request
Common Applications
- Refinery Industry
- Chemical Processing
- Fine Chemical Processing
- Metallurgical Industry
- Fiber Processing
- Pharmaceutical
- Electroplate Industry
- Paper Industry
- Electric Power Industry
