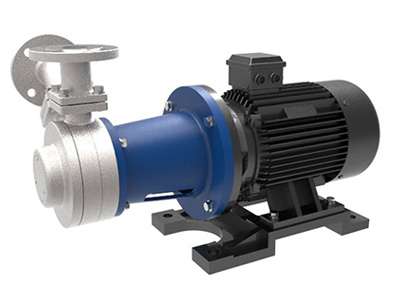

CWB Series Magnetic Drive Pumps
The CWB series magnetic drive pumps are suitable for small flow, high-head liquids. They are static sealed to prevent liquid leakage and a low vibration ensures an accurate operation with a longer service life. These pumps require transferred liquids to contain less than 10% solid particles and must have no ferrous particles. The viscosity of 30*10-6/S cannot exceed 365cp.
Technical Parameters
- Shaft seal type: magnetic drive
- Casing & impeller materials: 304, 316L stainless steel
- Distance sleeve materials: SiC, WC, SSiC
- Max rated pressure at 20℃: PN16，PN25
- Max fluid temperature: -40℃/+180℃
- Max flow rate at 2900 rpm: 14.4m³/h
- Max head at 2900 rpm: 150m
- Max allowable medium viscosity: 365cSt
- Allowable medium density range: ≤1.84g/cm3
- Power range: 0.37～45kW
- Others: available on request
Common Applications
- Refinery Industry
- Chemical Processing
- Fine Chemical Processing
- Metallurgical Industry
- Food Processing
- Fiber Processing
- Pharmaceutical
- Electroplate Industry
- Paper Industry
- Electric Power Industry
