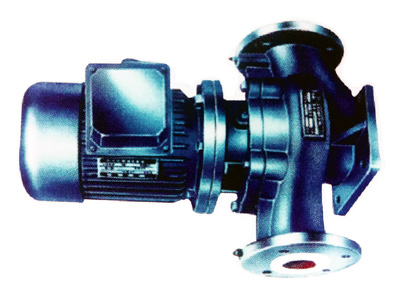

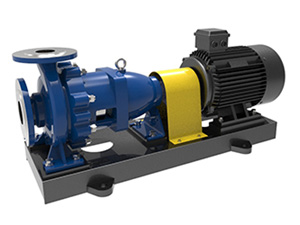

BA Series Centrifugal Pumps
The BA series centrifugal pumps use a semi-open impeller. This design is more tolerant of suspended particles in the liquid and allows the pumps to handle more viscous fluids. They ensure paper pulp, cotton pulp, and chemical fibers are smoothly transferred with no clogging, thus reducing required maintenance. The centrifugal pumps are capable of transferring a liquid concentration of 2-5%, and with a special design, a maximum concentration of 8%.
Technical Parameters
- Shaft seal type: engine drive
- Casing & impeller materials: SUS304, SUS316L, PVDF
- Max rated pressure at 20℃: PN16
- Max fluid temperature: ≤120℃
- Max flow rate at 2960 rpm: 1200m³/h
- Max head at 2960 rpm: 70m
- Allowable medium viscosity range: 2~5%
- Power range: 1.36~180kW
- Others: available on request
Common Applications
- Refinery Industry
- Chemical Processing
- Fine Chemical Processing
- Metallurgical Industry
- Fiber Processing
- Pharmaceutical
- Electroplate Industry
- Paper Industry
- Electric Power Industry
