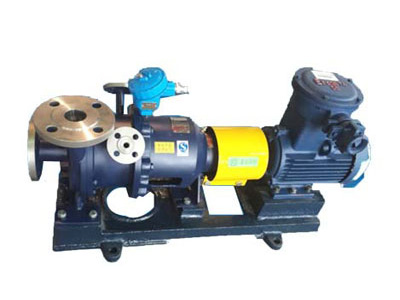

FIM-G Series Magnetic Drive Pumps
FIM-G Series magnetic drive pumps can operate at a pressure of 0.96MPa. Flow passage use materials like titanium alloy, stainless steel and tungsten carbide. The pumps can handle liquids from -45℃ to +350℃ thanks to the pump’s specially designed cooling and heating system. They can heat or cool the liquids to reach the optimal temperature for transferring. They are suitable for various industries such as petroleum, chemical engineering, medicine, pesticide, nuclear and so on with the capability of handling inflammable, volatile, toxic, and corrosive materials.
Technical Parameters
- Shaft seal type: magnetic drive
- Casing & impeller materials: 304, 306L stainless steel
- Distance sleeve materials: 304, 316L stainless steel, C276, Ti718
- Max rated pressure at 20℃: PN9.6
- Max fluid temperature: -45℃/+350℃
- Max flow rate at 2900 rpm: 120m³/h
- Max head at 2900 rpm: 40m
- Allowable medium density range: ≤1.84g/cm3
- Power range: 0.18～185kW
- Others: available on request
Common Applications
- Refinery Industry
- Chemical Processing
- Fine Chemical Processing
- Metallurgical Industry
- Food Processing
- Fiber Processing
- Pharmaceutical
- Electroplate Industry
- Paper Industry
- Electric Power Industry
