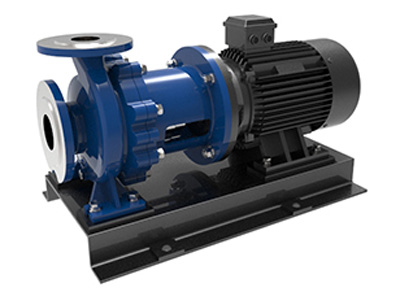

FMD Series Magnetic Drive Pumps
The FMD series of magnetic drive pump can transport liquids up to180℃ and is suitable for the transportation of corrosive and volatile fluids in the refinery industry, chemical processing, pharmaceutical and other areas.
The pumps are single-stage, single suction and horizontally oriented. The impact of radial thrust is reduced so that the internal magnetic rotor can operate quietly. The axial thrust auto-balancing structure enhances efficiency and reliability. The flow passage uses nickel alloy, stainless steel and titanium alloy so that it is resistant to abrasion and heating. The pump can transfer liquids between -45℃ and +180℃ with few non-ferrous particles and can meet the requirements of various working environments such as refineries, chemical processing facilities, pharmaceutical plants and more.
- Shaft seal type: magnetic drive
- Casing & impeller materials: 304, 316L stainless steel
- Distance sleeve materials: 304, 316L stainless steel
- Max rated pressure at 20℃: PN9.6
- Max fluid temperature: -45℃/+180℃
- Max flow rate at 2900 rpm: 120m³/h
- Max head at 2900 rpm: 50m
- Allowable medium density range: ≤1.84g/cm3
- Power range: 0.75～30kW
- Others: available on request
- Refinery Industry
- Chemical Processing
- Fine Chemical Processing
- Metallurgical Industry
- Food Processing
- Fiber Processing
- Pharmaceutical
- Electroplate Industry
- Paper Industry
- Electric Power Industry
