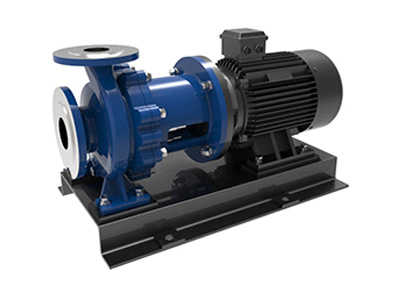

MDHG Series Magnetic Drive Pumps
Our series of single suction, single-stage upright pumps are simple in structure, quiet when operating and easy to maintain. The inlet section and outlet section are designed in parallel for easy layout and installation. This kind of pump is widely used in petroleum, petrochemical, gas industry process services, etc. The pump casing is made from stainless steel and SiC, so it is able to handle inflammable, explosive, toxic, or volatile materials. The flow passage uses titanium alloy, stainless steel and CS (carbon steel), providing years of trouble-free service.
Technical Parameters
- Shaft seal type: magnetic drive
- Casing & impeller materials: 304, 306L stainless steel
- Distance sleeve materials: 304, 306L stainless steel
- Max rated pressure at 20℃: PN16
- Max fluid temperature: -45℃/+180℃
- Max flow rate at 2900 rpm: 100m³/h
- Max head at 2900 rpm: 125m
- Allowable medium density range: ≤1.84g/cm3
- Power range: 1.5～75kW
- Others: available on request
Common Applications
- Refinery Industry
- Chemical Processing
- Fine Chemical Processing
- Metallurgical Industry
- Food Processing
- Fiber Processing
- Pharmaceutical
- Electroplate Industry
- Paper Industry
- Electric Power Industry
