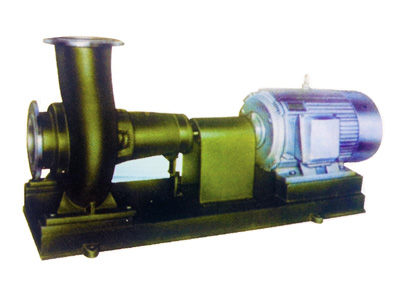

IHG-F Series Centrifugal Pumps
The IHG-F series centrifugal pumps use fluoroplastic lining, allowing them to handle a variety of chemicals, including acid, alkaline, salt of all concentrations, highly corrosive materials, strong oxidants and organic solvents. The flow passage uses fluoroplastics, ensuring the pumps are able to withstand high temperature, corrosive materials, high pressure and high mechanical strength materials without deformation. They can operate within a temperature range of -80 to +120℃.
Technical Parameters
- Shaft seal type: engine drive
- Casing & impeller materials: HT200, F46, PFA
- Max rated pressure at 20℃: PN10
- Max fluid temperature: -80℃/+120℃
- Max flow rate at 2900 rpm: 120m³/h
- Max flow rate at 1450 rpm: 60m³/h
- Max head at 2900 rpm: 50m
- Allowable medium density range: ≤1.84g/cm3
- Power range: 0.75～45kW
- Others: available on request
Common Applications
- Refinery Industry
- Chemical Processing
- Fine Chemical Processing
- Metallurgical Industry
- Fiber Processing
- Pharmaceutical
- Electroplate Industry
- Paper Industry
- Electric Power Industry
