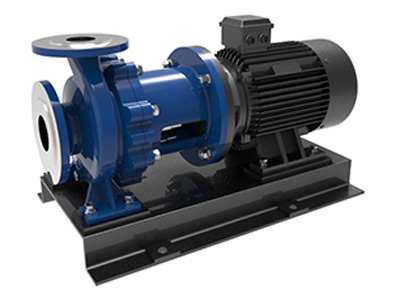

MDT Series Magnetic Drive Pumps
The MDT series of magnetic drive pump can transport liquids up to 180℃ and is suitable for transporting corrosive and volatile fluids in the refinery industry, chemical processing, pharmaceutical operations, and more.
The pumps are single-stage, single suction and horizontal. The well-designed structure allows the internal magnetic rotor to operate quietly. The axial force auto-balancing structure can ensure the stability of the pumps while the flow passage use corrosion-resistant materials that can transfer liquids with few non-ferrous particles and cater to the need of different working environments.
Technical Parameters
- Shaft seal type: magnetic drive
- Casing & impeller materials: 304, 316L stainless steel
- Distance sleeve materials: 304, 316L stainless steel
- Max rated pressure at 20℃: PN16
- Max fluid temperature: -45℃/+180℃
- Max flow rate at 2900 rpm: 100m³/h
- Max head at 2900 rpm: 125m
- Allowable medium density range: ≤1.84g/cm3
- Power range: 0.03～55kW
- Others: available on request
Common Applications
- Refinery Industry
- Chemical Processing
- Fine Chemical Processing
- Metallurgical Industry
- Food Processing
- Fiber Processing
- Pharmaceutical
- Electroplate Industry
- Paper Industry
- Electric Power Industry
