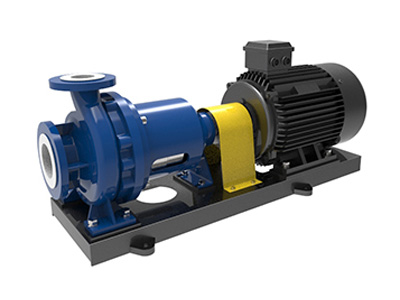

IMC-L Series Magnetic Drive Pumps
The IMC-L series magnetic drive pumps are designed with a plastic and fluorine plastic lining for an exceptional chemical compatibility with corrosive and otherwise aggressive fluids. The pumps are featured by high flow, high head and high power. Different from traditional ceramic metal, this transmission shaft is highly resistant to corrosion and temperature changes, ensuring a longer service life.
Technical Parameters
- Shaft seal type: magnetic drive
- Casing & impeller materials: PFA, F46
- Max rated pressure at 20℃: PN16
- Max fluid temperature: -40℃/+180℃
- Max flow rate at 2900 rpm: 400m³/h
- Max head at 2900 rpm: 125m
- Allowable medium density range: ≤1.84g/cm3
- Power range: 0.55～185kW
- Others: available on request
Common Applications
- Refinery Industry
- Chemical Processing
- Fine Chemical Processing
- Metallurgical Industry
- Fiber Processing
- Pharmaceutical
- Electroplate Industry
- Paper Industry
- Electric Power Industry
